Affostruction: 3D Affordance Grounding with Generative Reconstruction

Chunghyun Park1 Seunghyeon Lee1 Minsu Cho1,2
1POSTECH 2RLWRLD
CVPR 2026
arXiv Code

TL;DR: Full-shape affordance grounding from partial RGBD via generative reconstruction of unobserved surfaces.

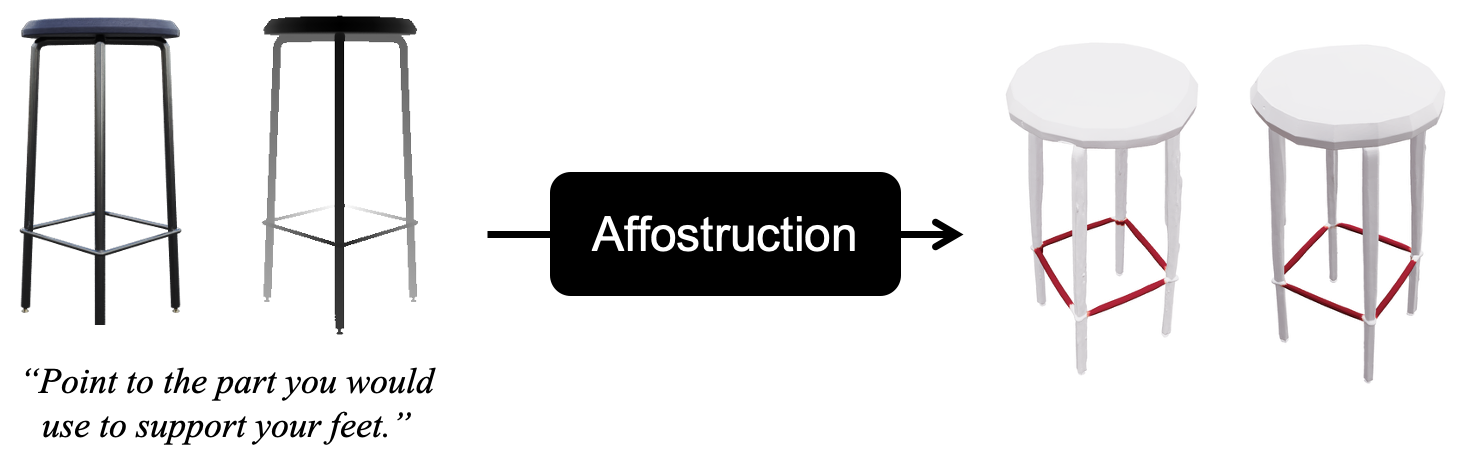

Teaser Image
Given an initial RGBD observation where functional regions for an affordance query (e.g., "attach a light fixture") are only partially visible or heavily occluded, we reconstruct the complete 3D geometry in a generative manner – estimating unobserved surfaces – and ground an affordance region on the full shape effectively. Building on this, an affordance-driven active view selection strategy identifies the most informative next viewpoint. The additional observation acquired from this selected view further refines both the 3D reconstruction and the affordance grounding of the target region.

Abstract

This paper addresses the problem of affordance grounding from RGBD images of an object, which aims to localize surface regions corresponding to a text query that describes an action on the object. While existing methods predict affordance regions only on visible surfaces, we propose Affostruction, a generative framework that reconstructs complete object geometry from partial RGBD observations and grounds affordances on the full shape including unobserved regions. Our approach introduces sparse voxel fusion of multi-view features for constant-complexity generative reconstruction, a flow-based formulation that captures the inherent ambiguity of affordance distributions, and an active view selection strategy guided by predicted affordances. Affostruction outperforms existing methods by large margins on challenging benchmarks, achieving 19.1 aIoU on affordance grounding and 32.67 IoU for 3D reconstruction.

Key contributions

Generative multi-view reconstruction

Sparse voxel fusion of multi-view RGBD features enables constant-complexity generative reconstruction, extrapolating complete geometry from partial observations.

Flow-based affordance grounding

A flow-based model predicts affordance heatmaps on reconstructed geometry conditioned on text queries, capturing the multi-modality of functional interactions.

Affordance-driven active view selection

Next-best views are selected based on affordance predictions to improve functional region coverage, achieving efficient reconstruction and grounding under limited view budgets.

Affostruction overview

Affostruction Overview
Our approach has three stages. (1) Generative multi-view reconstruction: DINOv2 features from RGBD views are fused into sparse voxels using depth and camera parameters, and a flow transformer extrapolates complete structure from partial observations via a pretrained decoder [4]. (2) Flow-based affordance grounding: a sparse flow transformer conditioned on CLIP-encoded text generates affordance heatmaps over reconstructed geometry. (3) Affordance-driven active view selection: next-best viewpoints maximize high-affordance visibility, and a mesh decoder [4] produces the final 3D mesh.

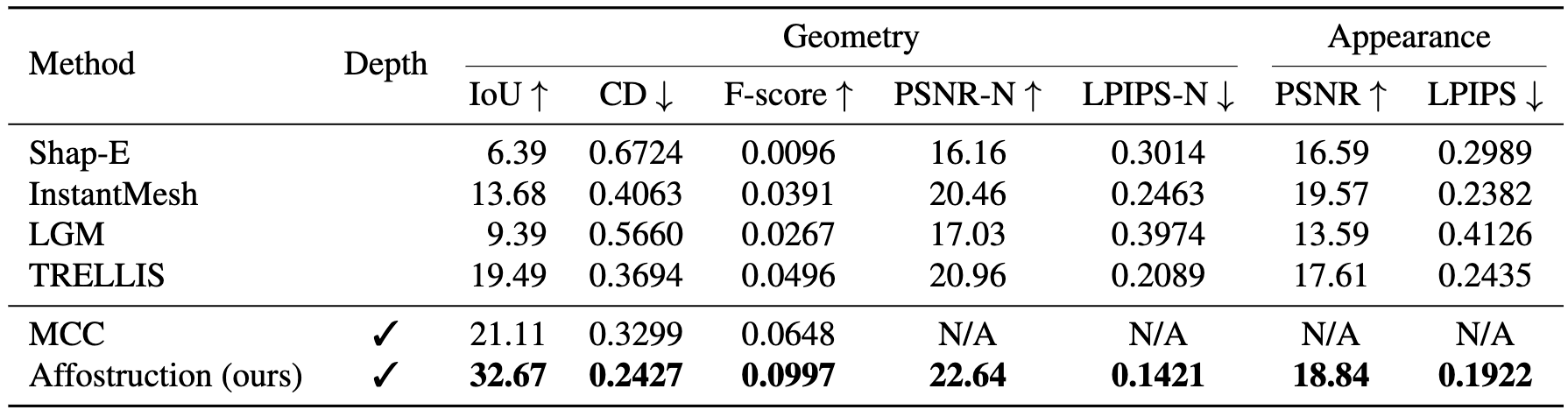

3D reconstruction results on Toys4K

Method Depth Geometry Appearance
IoU↑ CD↓ F-score↑ PSNR-N↑ LPIPS-N↓ PSNR↑ LPIPS↓
Shap-E [1] 6.39 0.6724 0.0096 16.16 0.3014 13.07 0.4358
InstantMesh [2] 13.68 0.4063 0.0391 20.46 0.2463 16.59 0.2989
LGM [3] 9.39 0.5660 0.0267 17.03 0.3974 13.59 0.4126
TRELLIS [4] 19.49 0.3694 0.0496 20.96 0.2089 17.61 0.2435
MCC [5] ✔ 21.11 0.3299 0.0648 N/A N/A N/A N/A
Affostruction (ours) ✔ 32.67 0.2427 0.0997 22.64 0.1421 18.84 0.1922

3D affordance grounding results on Affogato

Complete

Method aIoU↑ AUC↑ SIM↑ MAE↓
OpenAD [6] 3.1 64.8 0.329 0.150
PointRefer [7] 10.5 76.1 0.405 0.120
Espresso-3D [8] 13.6 79.0 0.429 0.111
Affostruction (ours) 19.1 72.0 0.426 0.217

Partial

Method Recon. aIoU↑ aCD↓
OpenAD [6] 0.38 0.4165
PointRefer [7] 0.53 0.3072
Espresso-3D [8] 0.60 0.2885
TRELLIS [4] + OpenAD [6] ✔ 1.49 0.1671
TRELLIS [4] + PointRefer [7] ✔ 2.05 0.1576
TRELLIS [4] + Espresso-3D [8] ✔ 2.23 0.1568
MCC [5] + OpenAD [6] ✔ 3.34 0.1503
MCC [5] + PointRefer [7] ✔ 4.19 0.1397
MCC [5] + Espresso-3D [8] ✔ 4.74 0.1354
Affostruction (ours) ✔ 9.26 0.1044

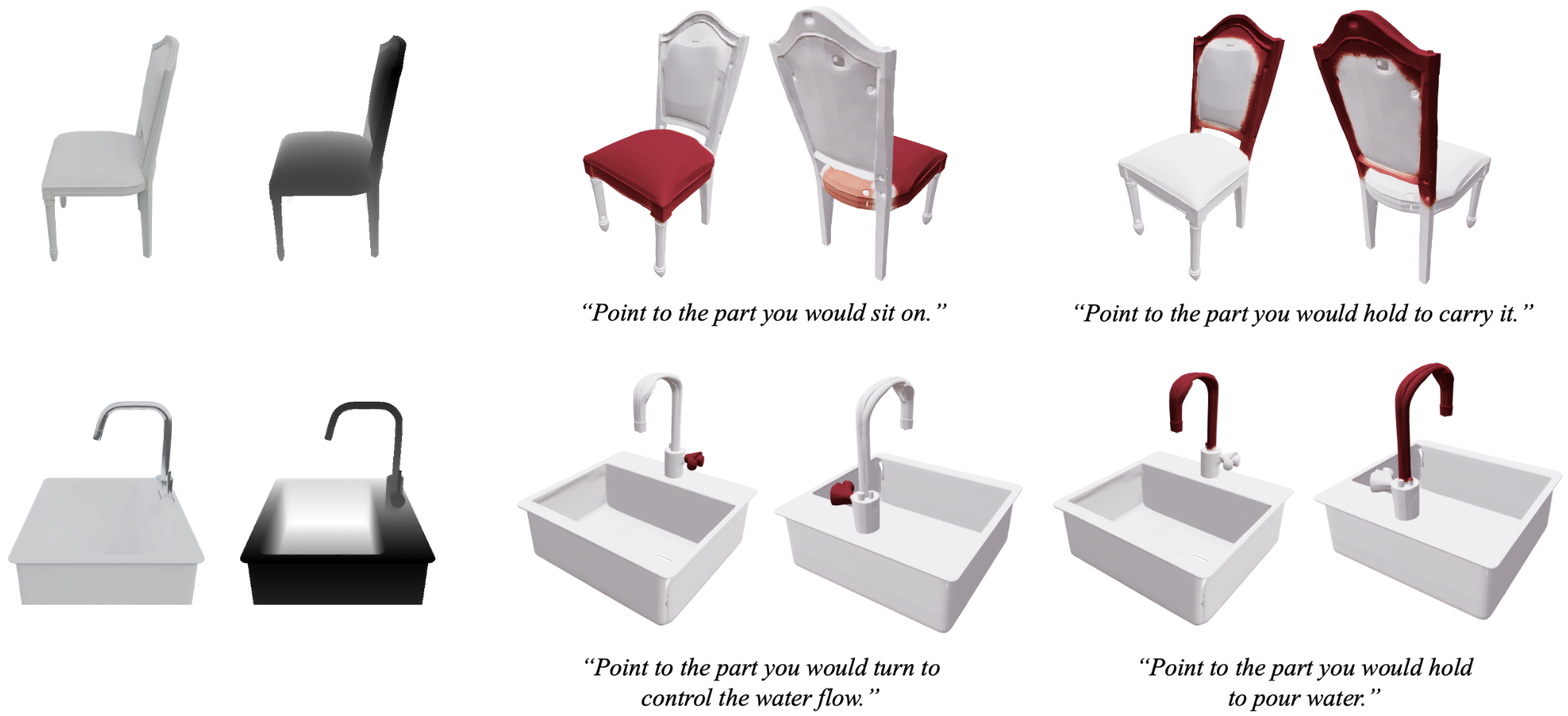

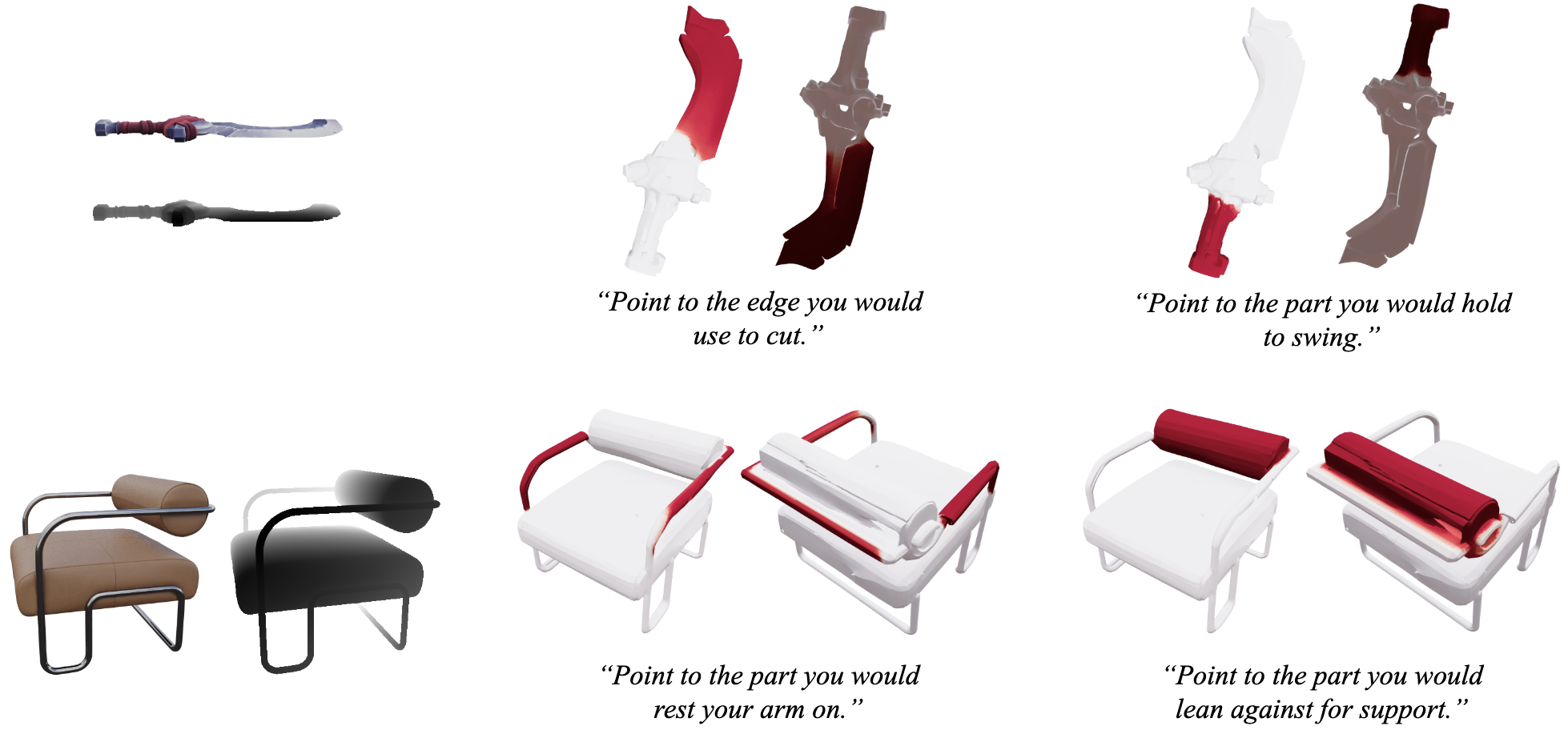

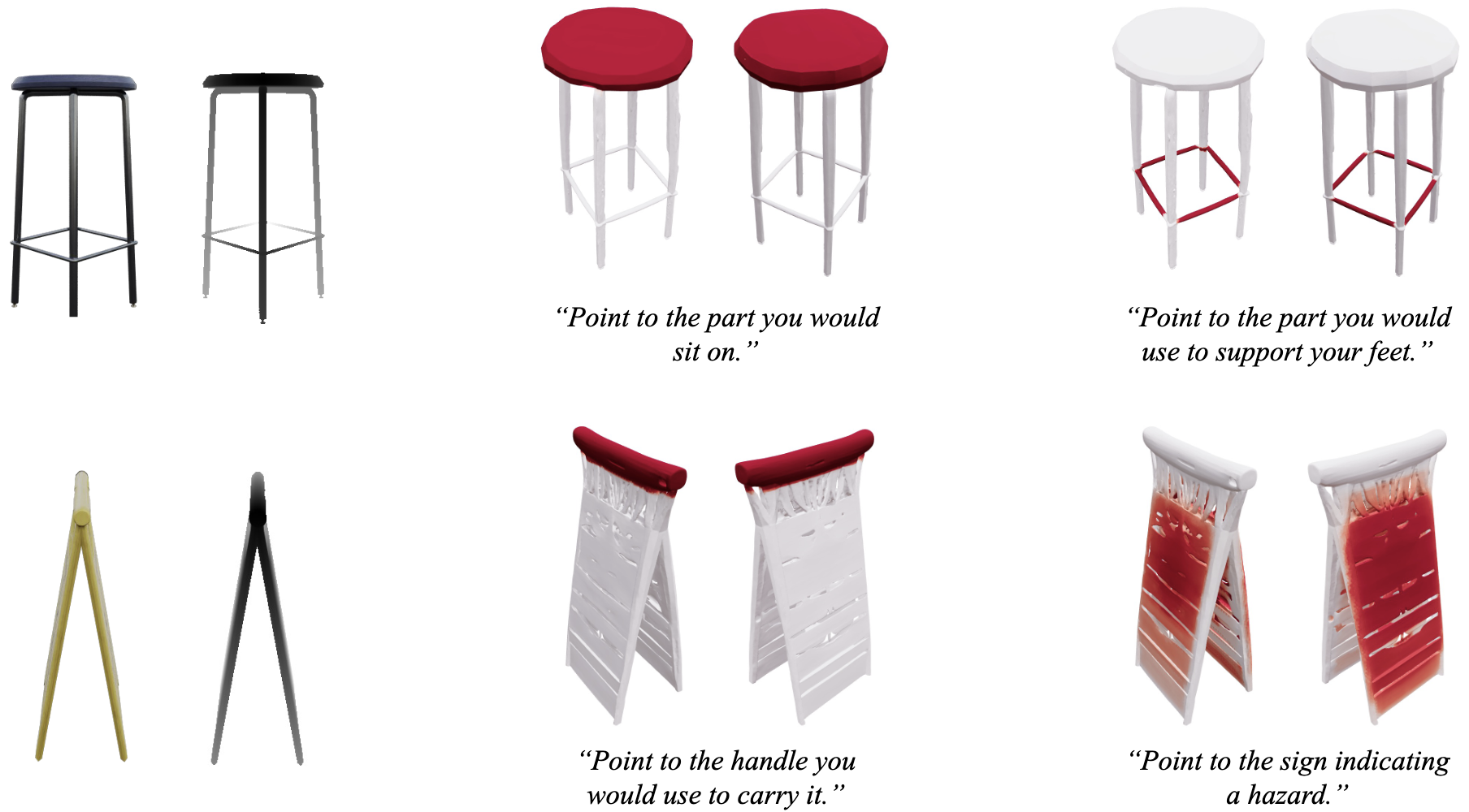

Qualitative results on Affogato

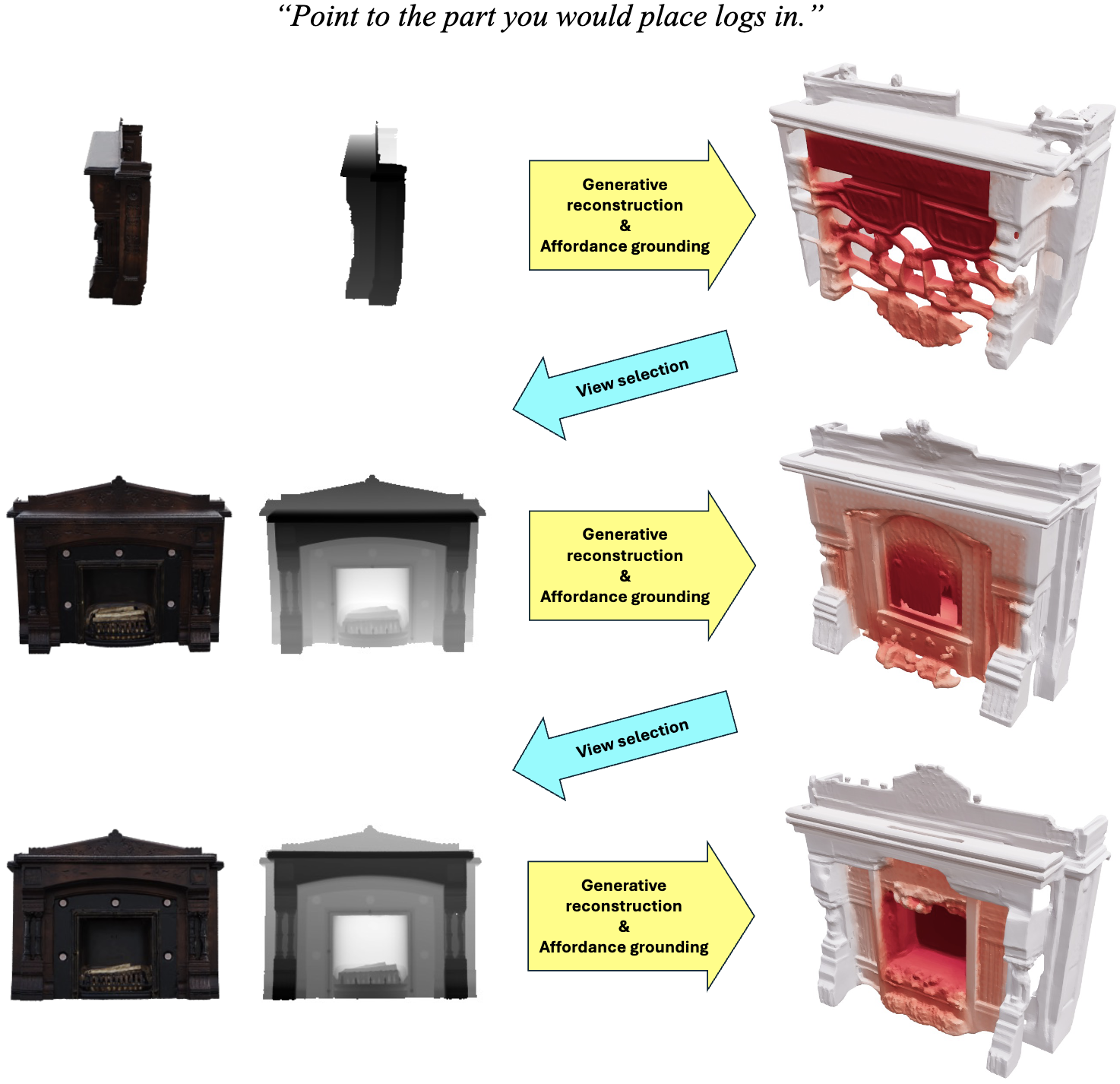

Progressive improvement via active view selection

Progressive Improvement via Active View Selection
From an initial viewpoint with limited visibility of the target area, Affostruction iteratively reconstructs unobserved surfaces, grounds affordances, and selects the next-best view based on predicted affordances. As views accumulate, both reconstruction and affordance grounding of target regions progressively improve.

References

[1] H. Jun and A. Nichol, "Shap-E: Generating Conditional 3D Implicit Functions," arXiv preprint arXiv:2305.02463, 2023.

[2] J. Xu, W. Cheng, Y. Gao, X. Wang, S. Gao, and Y. Shan, "InstantMesh: Efficient 3D Mesh Generation from a Single Image with Sparse-View Large Reconstruction Models," arXiv preprint arXiv:2404.07191, 2024.

[3] J. Tang, Z. Chen, X. Chen, T. Wang, G. Zeng, and Z. Liu, "LGM: Large Multi-View Gaussian Model for High-Resolution 3D Content Creation," in ECCV, 2024.

[4] J. Xiang, Z. Lv, S. Xu, Y. Deng, R. Wang, B. Zhang, D. Chen, X. Tong, and J. Yang, "TRELLIS: Structured 3D Latents for Scalable and Versatile 3D Generation," in CVPR, 2025.

[5] C.-Y. Wu, J. Johnson, J. Malik, C. Feichtenhofer, and G. Gkioxari, "Multiview Compressive Coding for 3D Reconstruction," in CVPR, 2023.

[6] T. Nguyen, M. N. Vu, A. Vuong, D. Nguyen, T. Vo, N. Le, and A. Nguyen, "Open-Vocabulary Affordance Detection in 3D Point Clouds," in IROS, 2023.

[7] Y. Li, N. Zhao, J. Xiao, C. Feng, X. Wang, and T.-S. Chua, "LASO: Language-guided Affordance Segmentation on 3D Object," in CVPR, 2024.

[8] J. Lee, E. Park, C. Park, D. Kang, and M. Cho, "Affogato: Learning Open-Vocabulary Affordance Grounding with Automated Data Generation at Scale," arXiv preprint arXiv:2506.12009, 2025.

BibTeX

@inproceedings{park2026affostruction,
  title={Affostruction: 3D Affordance Grounding with Generative Reconstruction},
  author={Park, Chunghyun and Lee, Seunghyeon and Cho, Minsu},
  booktitle={Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR)},
  year={2026},
}
